Neo4j+SpringBoot实现节点以及关系的增删改查（Spring Data Neo4j）

序号：04

  公司让学习一下Neo4j在SpringBoot框架下的使用，我知道有个Spring DATA Neo4J，在网上找了很多教程，有些地方让我困惑了很久，所以记下来希望能给后面学习的伙伴一些帮助。

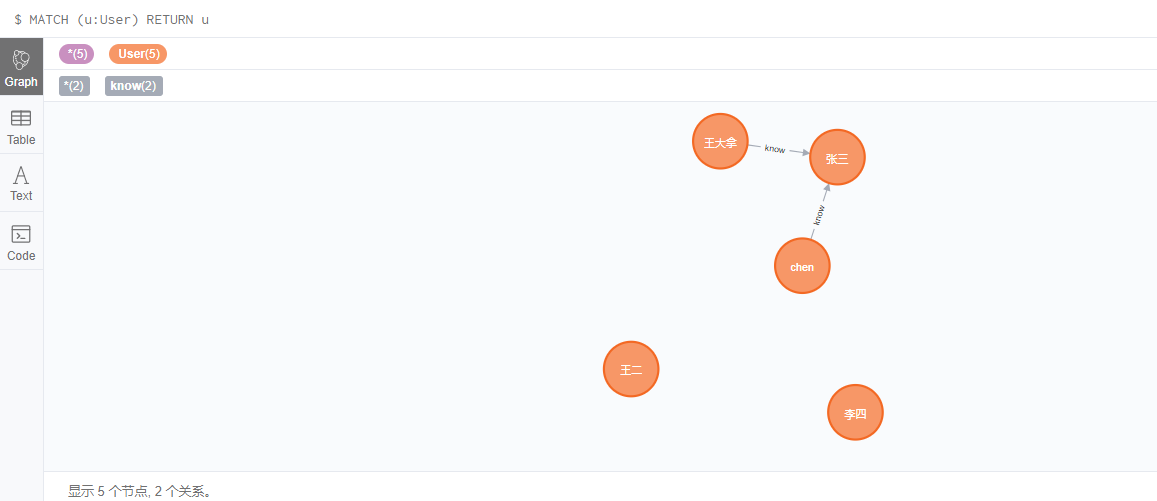

先上效果图：

一、开发环境

IDE：idea

JDK：1.8

先搭建一个普通的SpringBoot项目，然后导入依赖。

pom.xml如下：

<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
        xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 https://maven.apache.org/xsd/maven-4.0.0.xsd">

    <modelVersion>4.0.0</modelVersion>

    <parent>
        <groupId>org.springframework.boot</groupId>
        <artifactId>spring-boot-starter-parent</artifactId>
        <version>2.3.2.RELEASE</version>
        <relativePath/> <!-- lookup parent from repository -->
    </parent>

    <groupId>com.example</groupId>
    <artifactId>neo4jdemo</artifactId>
    <version>0.0.1-SNAPSHOT</version>
    <name>neo4jdemo</name>
    <description>Demo project for Spring Boot</description>

    <properties>
        <java.version>1.8</java.version>
    </properties>
    <dependencies>
        <!--Neo4j相关-->
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-data-neo4j</artifactId>
        </dependency>
        <dependency>
            <groupId>org.neo4j</groupId>
            <artifactId>neo4j-ogm-core</artifactId>
            <version>3.2.14</version>
        </dependency>
        <dependency>
            <groupId>org.springframework.data</groupId>
            <artifactId>spring-data-neo4j</artifactId>
            <version>5.3.2.RELEASE</version>
        </dependency>
        <!--Json处理 @JsonIdentityInfo(generator= JSOGGenerator.class)用到-->
        <dependency>
            <groupId>com.voodoodyne.jackson.jsog</groupId>
            <artifactId>jackson-jsog</artifactId>
            <version>1.1</version>
            <scope>compile</scope>
        </dependency>
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-web</artifactId>
        </dependency>
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-test</artifactId>
            <scope>test</scope>
            <exclusions>
                <exclusion>
                    <groupId>org.junit.vintage</groupId>
                    <artifactId>junit-vintage-engine</artifactId>
                </exclusion>
            </exclusions>
        </dependency>
    </dependencies>

    <build>
        <plugins>
            <plugin>
                <groupId>org.springframework.boot</groupId>
                <artifactId>spring-boot-maven-plugin</artifactId>
            </plugin>
        </plugins>
    </build>
</project>

yml配置：

spring:
  data:
    neo4j:
      uri: bolt://localhost:7687
      username: neo4j
      password: cldev

二、代码部分

目录结构：

  为了简单，本项目节点只设置一种类型（User），实现的关系的某一个User知道另一User，关系（Know）。

首先编写User节点类（UserNode .java）：

package com.example.neo4jdemo.entity.node;
import com.fasterxml.jackson.annotation.JsonIdentityInfo;
import com.voodoodyne.jackson.jsog.JSOGGenerator;
import org.neo4j.ogm.annotation.*;
import java.util.HashSet;
import java.util.Set;

@JsonIdentityInfo(generator= JSOGGenerator.class)
@NodeEntity(label = "User")
public class UserNode {

    @Id
    @GeneratedValue
    private Long nodeId;

    @Property(name = "name")
    private String name;

    @Property(name = "age")
    private int age;

    @Property(name = "sex")
    private String sex;

    /* 注意这个地方：并不是说加了这个注解，然后下面实现了addKnows这个方法在以后调用addKnows
     * 就可以实现关系的增加，这是不对的，我看了很多教程没有说明。这个addKnows方法，只有在节点未被
     * 添加之前，调用该方法添加关系，然后再调用UserService中的create方法，这样关系才会同时被添加到图
     * 数据库中。如果想实现两个已有节点之间增加关系，需要单独实现
     */

    @Relationship(type = "know" ,direction = Relationship.OUTGOING)
    private Set<UserNode> knows = new HashSet<>();

    public Long getNodeId() {
        return nodeId;
    }

    public void setNodeId(Long nodeId) {
        this.nodeId = nodeId;
    }

    public String getName() {
        return name;
    }

    public void setName(String name) {
        this.name = name
    }

    public int getAge() {
        return age;
    }

    public void setAge(int age) {
        this.age = age;
    }

    public String getSex() {
        return sex;
    }

    public void setSex(String sex) {
        this.sex = sex;
    }

    public Set<UserNode> getKnows() {
        return knows;
    }

    public void setKnows(Set<UserNode> knows) {
        this.knows = knows;
    }

    public Boolean addKnows(UserNode to){
        return this.knows.add(to);
    }

    @Override
    public String toString() {
        return "UserNode{" +
                "nodeId=" + nodeId +
                ", name='" + name + '\'' +
                ", age=" + age +
                ", sex='" + sex + '\'' +
                '}';
    }

    public UserNode() {}
}

关系类（Know.java）

package com.example.neo4jdemo.entity.relationship;

import com.example.neo4jdemo.entity.node.UserNode;
import com.fasterxml.jackson.annotation.JsonIdentityInfo;
import com.voodoodyne.jackson.jsog.JSOGGenerator;
import org.neo4j.ogm.annotation.*;

/**
 * @program: neo4jdemo
 * @description: 知道关系类
 * @author: chen
 * @create: 2020-07-27
 **/

@JsonIdentityInfo(generator= JSOGGenerator.class)
@RelationshipEntity(type = "know")
public class Know  {

    @Id
    @GeneratedValue
    private Long id;

    @StartNode
    private UserNode from;

    @EndNode
    private UserNode to;

    public Long getId() {
        return id;
    }

    public void setId(Long id) {
        this.id = id;
    }

    public UserNode getFrom() {
        return from;
    }

    public void setFrom(UserNode from) {
        this.from = from;
    }

    public UserNode getTo() {
        return to;
    }

    public void setTo(UserNode to) {
        this.to = to;
    }

    public Know() {
    }

    public Know(UserNode from, UserNode to) {
        this.from = from;
        this.to = to;
    }

    @Override
    public String toString() {
        return "Know{" +
                "id=" + id +
                ", from=" + from +
                ", to=" + to +
                '}';
    }
}

KnowRepository.java

package com.example.neo4jdemo.repository;

import com.example.neo4jdemo.entity.relationship.Know;
import org.springframework.data.neo4j.annotation.Query;
import org.springframework.data.neo4j.repository.Neo4jRepository;
import org.springframework.data.repository.query.Param;

/**
 * @program: neo4jdemo
 * @description: 知道关系接口类
 * @author: chen
 * @create: 2020-07-27
 **/

public interface KnowRepository extends Neo4jRepository<Know,Long> {
    @Query("MATCH (fromNode) WHERE id(fromNode) = {fromId} MATCH (toNode) WHERE id(toNode) = {toId} MATCH (fromNode)-[r]->(toNode) DELETE r")
    void deleteByNodeId(@Param(value = "fromId") long fromId,@Param(value = "toId") long toId);
}

UserRepository.java

基础的增删改查Spring Data Neo4j已经封装好在Neo4jRepository里面了。

package com.example.neo4jdemo.repository;

import com.example.neo4jdemo.entity.node.UserNode;
import org.springframework.data.neo4j.annotation.Query;
import org.springframework.data.neo4j.repository.Neo4jRepository;
importorg.springframework.data.repository.query.Param;
import org.springframework.stereotype.Repository;

@Repository
public interface UserRepository extends Neo4jRepository<UserNode,Long> {

//    @Query("MATCH (n:User) RETURN n ")
//    List<UserNode> getUserNodeList();

//    @Query("create (n:User{name:{name},age:{age},sex:{sex}}) RETURN n ")
//    UserNode addUserNode(@Param("name") String name, @Param("age")int age, @Param("sex") String sex);
    @Query("MATCH (n) WHERE id(n) = :#{#userNode.nodeId} SET n.name = :#{#userNode.name},n.age = :#{#userNode.age},n.sex = :#{#userNode.sex} RETURN n")
    UserNode updateByNode(@Param("userNode") UserNode userNode);

}

UserService.java

package com.example.neo4jdemo.service;

import com.example.neo4jdemo.entity.node.UserNode;
import com.example.neo4jdemo.entity.relationship.Know;
import java.util.List;
import java.util.Optional;

public interface UserService {

    /**
     * @Description: 添加user节点
     * @Params: [UserNode]
     * @return: int
     * @Author: chen
     * @Date: 2020/7/27
     */
    UserNode create(UserNode userNode);

    /**
     * @Description: 删除
     * @Author: chen
     * @Date: 2020/7/27
     */
    void deleteById(Long id);

    /**
     * @Description: 查询
     * @Author: chen
     * @Date: 2020/7/27
     * @return
     */
    Optional<UserNode> findById(long id);

    /**
     * @Description: 获取所有User节点
     * @Params: null
     * @return: List
     * @Author: chen
     * @Date: 2020/7/27
     */
    List<UserNode> findAll();

    /**
     * @Description: 增加“知道”关系
     * @Author: chen
     * @Date: 2020/7/27
     */
    Know addIKnows(UserNode fromNode, UserNode toNode);

    UserNode updateByNode(UserNode userNode);

    void deleteKnowByNodeId(long fromId,long toId);

}

UserServiceImpl.java

package com.example.neo4jdemo.service.impl;

import com.example.neo4jdemo.entity.node.UserNode;
import com.example.neo4jdemo.entity.relationship.Know;
import com.example.neo4jdemo.repository.KnowRepository;
import com.example.neo4jdemo.repository.UserRepository;
import com.example.neo4jdemo.service.UserService;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.stereotype.Service;
import java.util.List;
import java.util.Optional;

@Service
public class UserServiceImpl implements UserService {

    @Autowire
    private UserRepository userRepository;

    @Autowire
    private KnowRepository knowRepository;

    @Override
    public UserNode create(UserNode userNode) {
        return userRepository.save(userNode);
    }

    @Override
    public void deleteById(Long id) {
        userRepository.deleteById(id);
    }

    @Override
    public Optional<UserNode> findById(long id) {
        return userRepository.findById(id);
    }

    @Override
    public List<UserNode> findAll() {
        return (List<UserNode>) userRepository.findAll();
    }

    @Override
    public Know addIKnows(UserNode fromNode, UserNode toNode) {
        Know newKnow = new Know(fromNode,toNode);
        return knowRepository.save(newKnow);
    }

    @Override
    public UserNode updateByNode(UserNode userNode) {
        return userRepository.updateByNode(userNode);
    }

    @Override
    public void deleteKnowByNodeId(long fromId, long toId) {
        knowRepository.deleteByNodeId(fromId,toId);
    }
}

UserController.java

package com.example.neo4jdemo.controller;

import com.example.neo4jdemo.entity.node.UserNode;
import com.example.neo4jdemo.entity.relationship.Know;
import com.example.neo4jdemo.service.UserService;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.web.bind.annotation.*;
import java.util.List;
import java.util.Optional;

/**
* @program: neo4jdemo
* @description: 控制层
* @author: chen
* @create: 2020-07-27
**/

@RestControlle
public class UserController {

    @Autowired
    private UserService userService;

    /**
    * @Description: 添加节点
    * @Author: chen
    * @Date: 2020/7/27
    */
    @RequestMapping(path = "/add", method = RequestMethod.POST)
    public UserNode addUserNode(@RequestBody UserNode userNode) {
        return userService.create(userNode);
    }

    /**
    * @Description: 根据id删除
    * @Author: chen
    * @Date: 2020/7/27
    */
    @RequestMapping(path = "/delete", method = RequestMethod.POST)
    public int delUserNodeById(@RequestParam(value = "id") long id) {
        userService.deleteById(id);
        System.out.println(id);
        return 1;
    }

    /**
    * @Description: 根据id更新
    * @Author: chen
    * @Date: 2020/7/27
    */
    @RequestMapping(path = "/update", method = RequestMethod.POST)
    public UserNode updateUserNodeByNode(@RequestBody UserNode userNode)
        return userService.updateByNode(userNode)
    }

    @RequestMapping(path = "/get", method = RequestMethod.GET)
    public UserNode getUserNodeById(@RequestParam(value = "id") long id) {

        Optional<UserNode> optionalUserNode =  userService.findById(id);

        if(optionalUserNode.isPresent()){
            return optionalUserNode.get();
        }else{
            return null;
        }
    }

    /**
    * @Description: 查找所有节点
    * @Author: chen
    * @Date: 2020/7/27
    */
    @RequestMapping(path = "/list", method = RequestMethod.GET)
    public List<UserNode> getUserNodeList() {
        return userService.findAll();
    }

    @RequestMapping(path = "/addKnows", method = RequestMethod.POST)
    public Know addKnowsById(@RequestParam(value = "from") long fromId, @RequestParam(value = "to") long toId) {

        Optional<UserNode> fromOpt =  userService.findById(fromId);
        Optional<UserNode> toOpt =  userService.findById(toId);

        if(fromOpt.isPresent()&&toOpt.isPresent()){
            return userService.addIKnows(fromOpt.get(),toOpt.get());
        }else{
            return null;
        }
    }

    @RequestMapping(path = "/delKnows", method = RequestMethod.POST)
    public String deleteKnowsByNodeId(@RequestParam(value = "from") long fromId, @RequestParam(value = "to") long toId) {

        Optional<UserNode> fromOpt =  userService.findById(fromId);
        Optional<UserNode> toOpt =  userService.findById(toId);

        if(fromOpt.isPresent()&&toOpt.isPresent()){
            userService.deleteKnowByNodeId(fromId,toId);
            return "ok";
        }else{
            return "false";
        }
    }
}

Neo4jConfig.java 我也不知道干啥的

package com.example.neo4jdemo.config;

import org.springframework.context.annotation.Configuration;
import org.springframework.data.neo4j.repository.config.EnableNeo4jRepositories;
import org.springframework.transaction.annotation.EnableTransactionManagement;

@Configuration
@EnableNeo4jRepositories(basePackages = "com.example.neo4jdemo.repository")
@EnableTransactionManagement // 激活SDN隐式事务
public class Neo4jConfig {
}

重点就是User中的那段注释，是我困扰了很久的问题，希望大家能够避坑。有什么问题可以留言。
